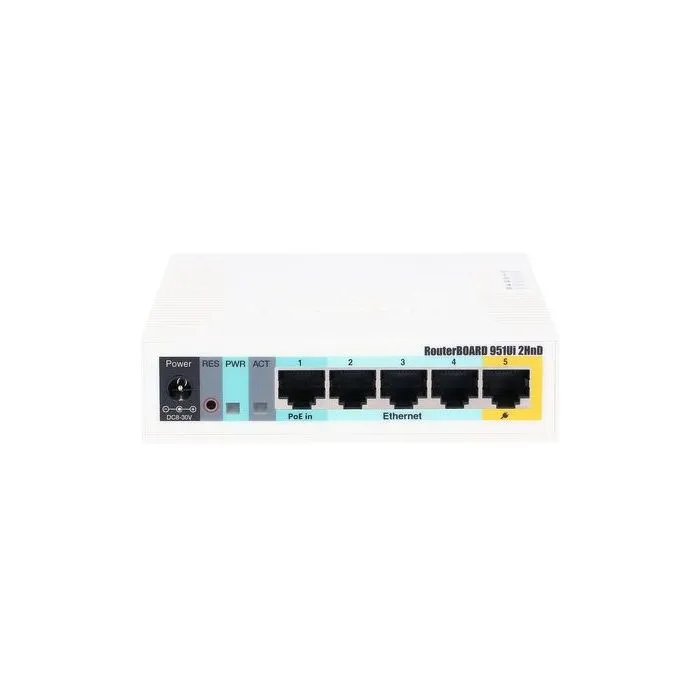

RB951Ui-2HnD je brezžični SOHO AP z novo generacijo procesorja Atheros in večjo procesorsko močjo.
Ima pet vmesnikov Ethernet, en USB 2.0 vhod in 2,4 GHz 802.11 b/g/n brezžični AP z vgrajenimi antenami.
Ima 600MHz CPU, 128 MB RAM-a in PoE izhodno funkcijo za vrata # 5 - lahko napaja druge naprave, sposobne za PoE, z enako napetostjo, kot je priključena na enoto.
Največja obremenitev izhoda je 500mA.

Paket vsebuje RouterBOARD 951Ui-2HnD v plastičnem ohišju in napajalnik.
SPECIFIKACIJE:

Details


Product code
RB951Ui-2HnD


Architecture
MIPSBE


CPU
AR9344


CPU core count
1


CPU nominal frequency
600 MHz


Dimensions
113x138x29mm


RouterOS license
4


Operating System
RouterOS


Size of RAM
128 MB


Storage size
128 MB


Storage type
NAND


MTBF
Approximately 100'000 hours at 25C


Tested ambient temperature
-20C +60C


Suggested price
$59.95


Wireless capabilities



Details


Wireless 2.4 GHz Max data rate
300 Mbit/s


Wireless 2.4 GHz number of chains
2


Wireless 2.4 GHz standards
802.11b/g/n


Antenna gain dBi for 2.4 GHz
2.maj


Wireless 2.4 GHz chip model
AR9344


Wireless 2.4 GHz generation
Wi-Fi 4


Ethernet



Details


10/100 Ethernet ports
5


Peripherals



Details


Number of USB ports
1


USB Power Reset
Yes


USB slot type
USB type A


Max USB current (A)
1


Powering



Details


Number of DC inputs
2 (PoE-IN, DC jack)


DC jack input Voltage
8-30 V


Max power consumption
24 W


Max power consumption without attachments
7 W


FAN count
Passive


PoE in
Passive PoE


PoE in input Voltage
8-30 V


PoE-out



Details


PoE-out ports
Ether5


PoE out
Passive PoE


Max out per port output (input 18-30 V)
500 mA


Max total out (A)
500 mA


Certification & Approvals



Details


Certification
CE, FCC, IC, EAC, ROHS


Wireless specifications



2.4 GHz
Transmit (dBm)
Receive Sensitivity

6MBit/s
30
-96

54MBit/s
25
-80

MCS0
30
-96

MCS7
23
-78

Uradna stran proizvajalca: https://mikrotik.com/product/RB951Ui-2HnD#fndtn-gallery
